News Paper Web - 2x1 - ECOLINE
line

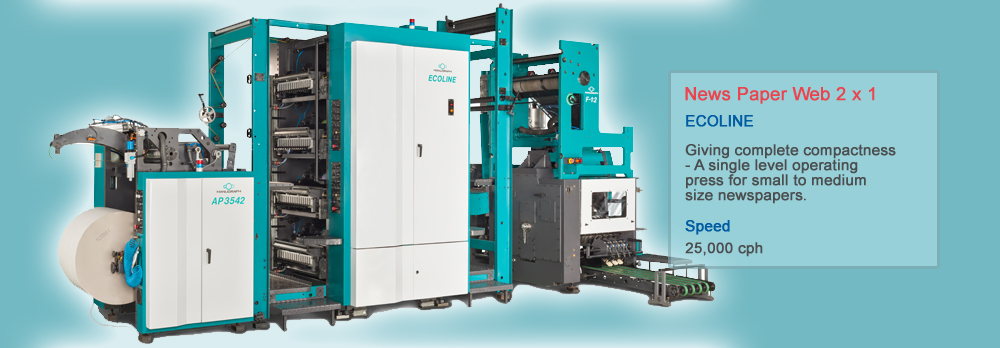

ECOLINE is a versatile single width single circumference four page newspaper press for flexible newspaper printing. While featuring compactness with single level operation, it offers optimum output with the flexibility of single width presses to meet small & medium size volumes. ECOLINE offers 4x4 colour printing through a single deck, giving compactness which results in minimum floor space, better control on waste and high print quality.

Speed 25,000 cph
Max. web width ( mm) 700
Cut offs 546, 578
Tower Features at a glance -
Tower type modular construction with vertical web lead
Solid plate and blanket cylinders mounted on precision taper roller bearings (in ceased in bushes)
Dynamically balanced solid steel cylinders with hard chrome plating
Micro-gap plate lock-up, toolless plate loading
Reel rod blanket locking system 4 Ply blanket
Precision class helical gears for cylinders
Swing down ink fountain for faster make ready
8 rollers film type inking system with 2 form rollers
Brush dampening system
Motorized lateral and circumferential registration system 2 mm
Shortest first to last nip distance
Single level operating
Web severer at entry & exit of Tower
Web break detector at exit ofTower
Pneumatics for impression and roller on/off
Main drive decoupling arrangement
Motorized lubrication system
Overload protection system in Tower
HMI (Human Machine Interface)controls
Manual operated web lead system
PLC base control system
UV attachment (optional)
ECOLINE
